1.5 ton mini excavator

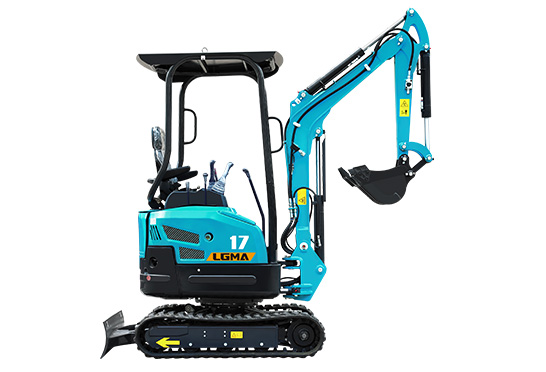

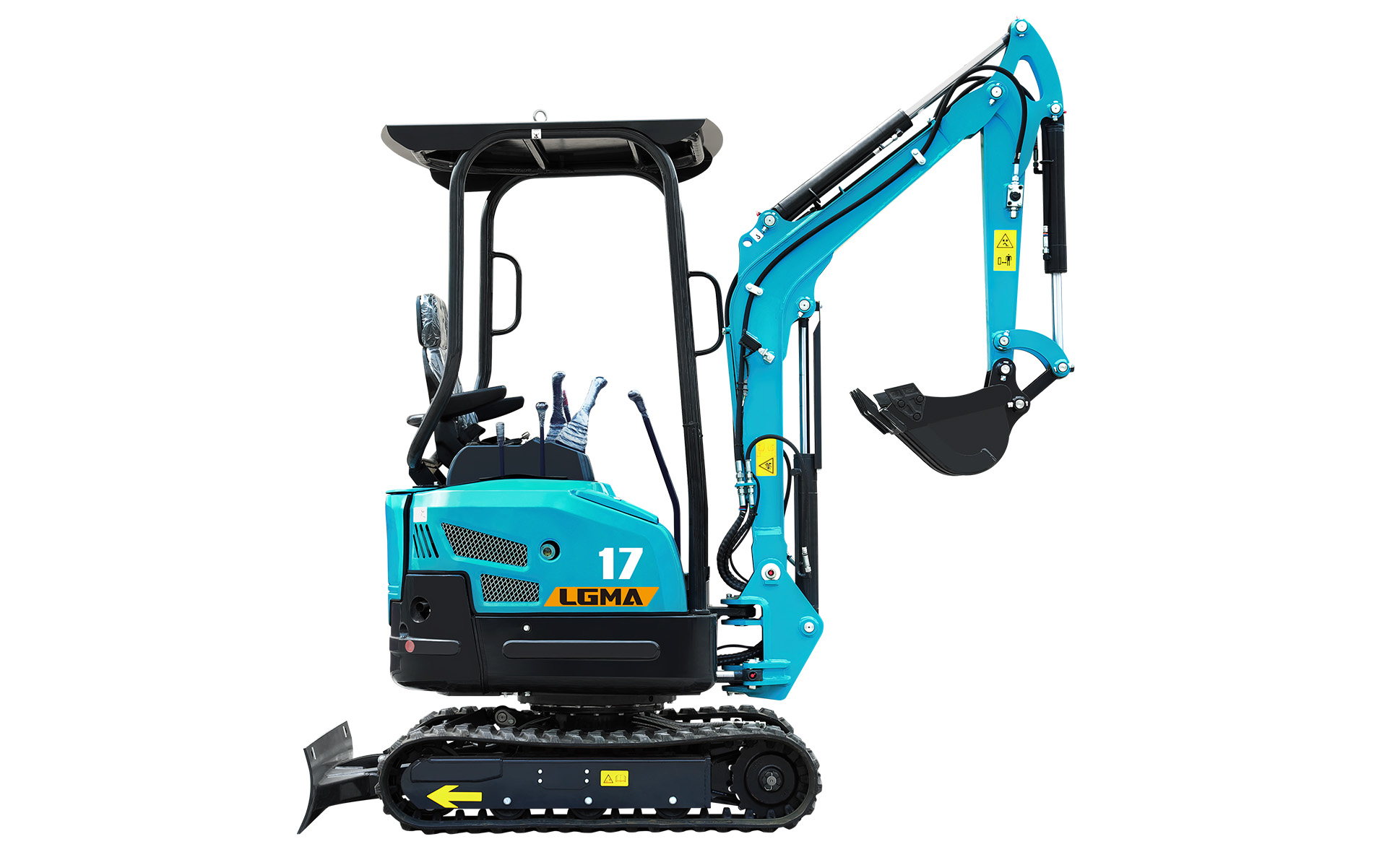

LM17 Mini Excavator

LM17 Mini Excavator

Product parameter

0.04m³
1550KG
16HP

Product characteristics

1. Standard piston pump loadnsensitive, soft and powerful action, low engne temperature,energy saving, and fuel saving.

2. Hydraulic pilot operation with satety lock to avoid operating errors.

3. Dual rotary motors, high power. long life, play a cushioning effect, soft, comfortable and stable movements.

4. The pin comes with a grease nipple for extra lubrication.minor differences between theactual product and the pictunes.

5. Crusher shut-off valve, durable and wear-resistant cast steel, precise interface, good mechanical properties, prevent oil dripping and leakage.

Product parameter

Main Technical Parameters
Bucket capacity: 0.04
Machine weight: KG 1550
Climb1ng ablity: ° 55
Bucket digging force: KN 13.8
Tank volume: L 18
Track width : mm 230
Overall dimension: mm 3300*1110*2360
Max. digging height: mm 3310
Max. dumping height: mm 2370
Max. digging depth: mm 2120
Max digging radius : mm 3640
Engine model:   D902-E4B-CBH-1
Power: HP 16
