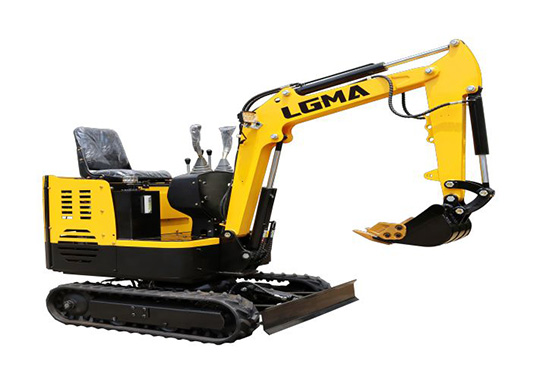

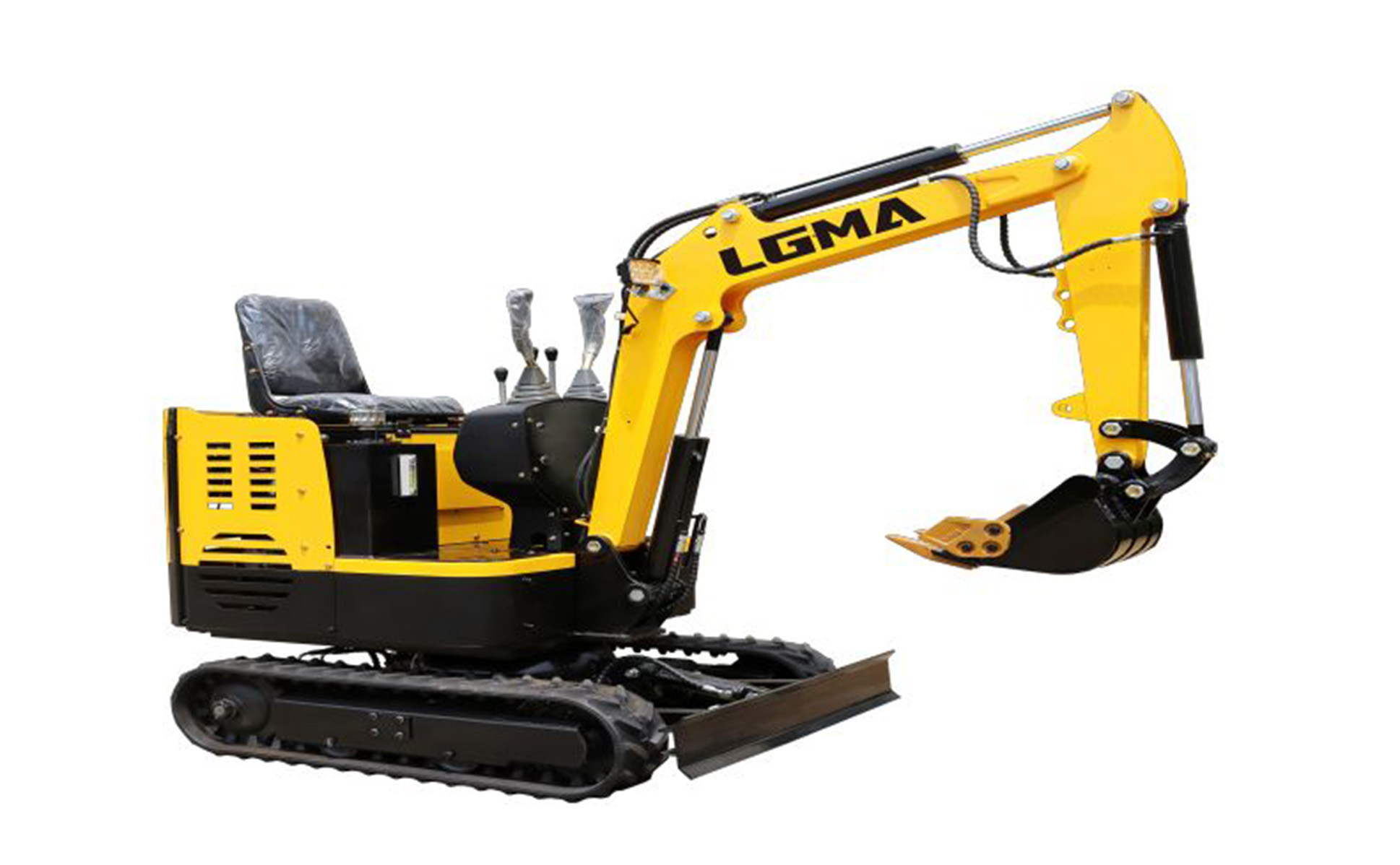

LZ15 Mini Excavator
1.1ton Mini Excavator

LZ15 Mini Excavator

Product parameter

0.025m³
1100KG
20HP

Product characteristics

1. Standard piston pump loadnsensitive, soft and powerful action, low engne temperature,energy saving, and fuel saving.

2. Hydraulic pilot operation with satety lock to avoid operating errors.

3. Dual rotary motors, high power. long life, play a cushioning effect, soft, comfortable and stable movements.

4. The pin comes with a grease nipple for extra lubrication.minor differences between theactual product and the pictunes.

5. Crusher shut-off valve, durable and wear-resistant cast steel, precise interface, good mechanical properties, prevent oil dripping and leakage.

Product parameter

Main Technical Parameters
Bucket capacity: 0.025
Machine weight: KG 1100
Climb1ng ablity: ° 20
Bucket digging force: KN 13.5
Tank volume: L 7
Track width : mm 180
Overall dimension: mm 2450 x 1000 x 2200
Max. digging height: mm 2550
Max. dumping height: mm 1600
Max. digging depth: mm 1650
Max digging radius : mm 2400
Engine model:   KOOP Twin-cylinder
Power: HP 20
