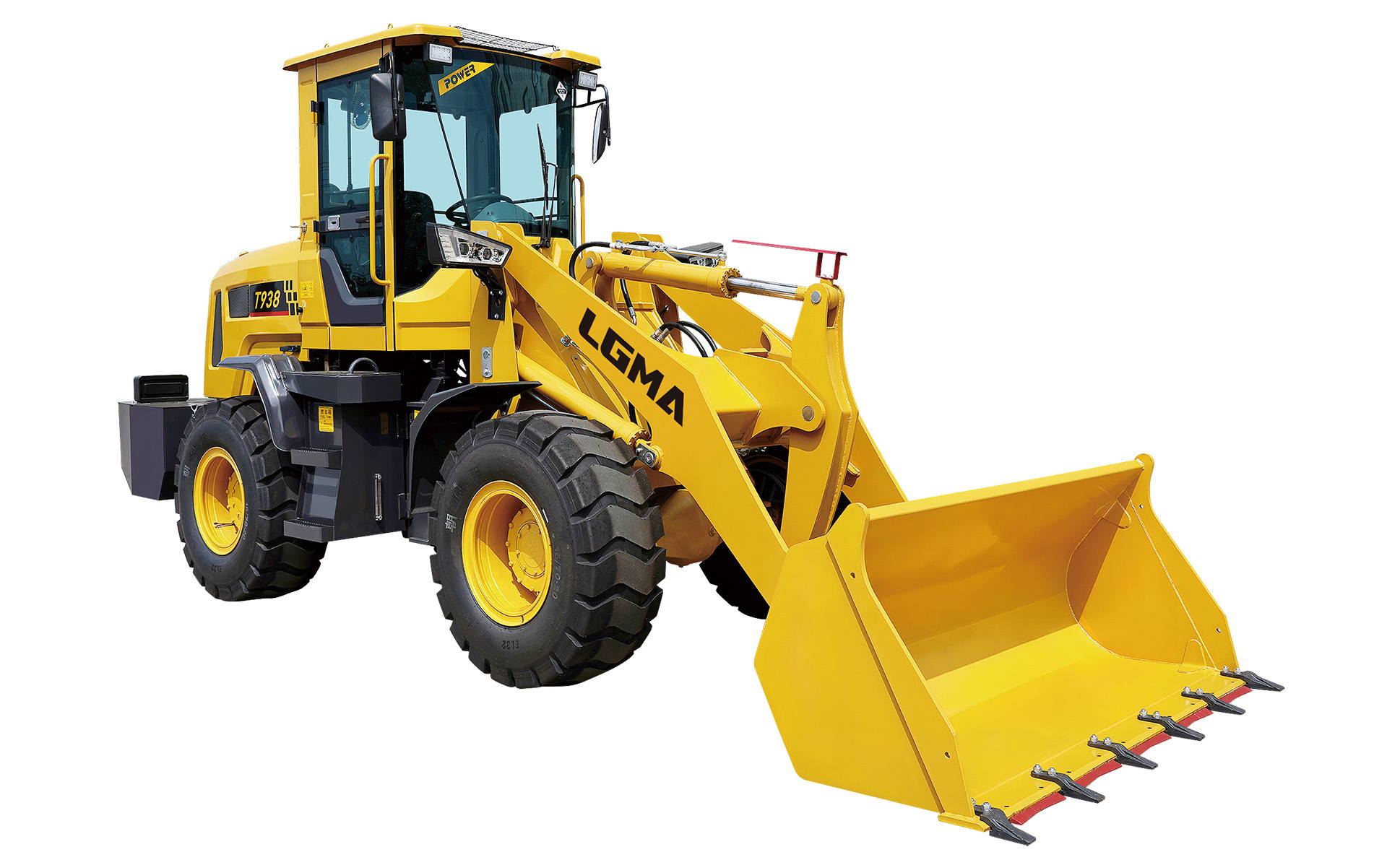

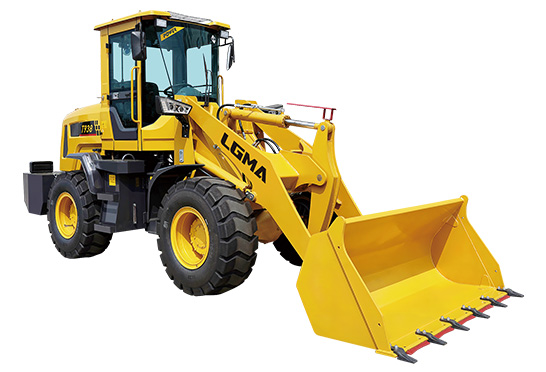

T938 Wheel Loader
T938 Wheel Loader

T938 Wheel Loader

T series Compact Wheel loader

1.0m³
2000kg
76kw

Product Feature

1.The shell is all metal, no plastic material! High temperature resistance, easier to dissipate heat.

2.Adopt large wheel side to reduce speed, increase speed and high torque without losing torque.Cooperate with Lugong brand gearbox to achieve high performance and low fuel consumption.

3.The fuselage adopts the drawing and stamping process, the appearance is curved, the overall appearance is beautiful, the internal space is large, and the structure is stronger.

4.T series wheel loaders can be equipped with a variety of attachments according to different operating environments and types of work requirements, such as grain buckets, wooden forks, pitch forks, cross-country forks, pallet forks, etc.

Product parameter

Main Technical Parameters
Bucket capacity  1.0
Rated load  kg 2000
Machine weight  kg 5200
Overall dimension (L x W x H) mm 6150 x 1990 x 2920
Wheel base mm 2520
Wheel track  mm 1570
Bucket width mm 2000
Standard dumping height mm 3500
Optional dumping height mm 3800/4500/5000
Turning radius  mm 5000
Standard Tires / 16/70-20
Engine model / Sida4102 turbo
Rated power  kw 76
